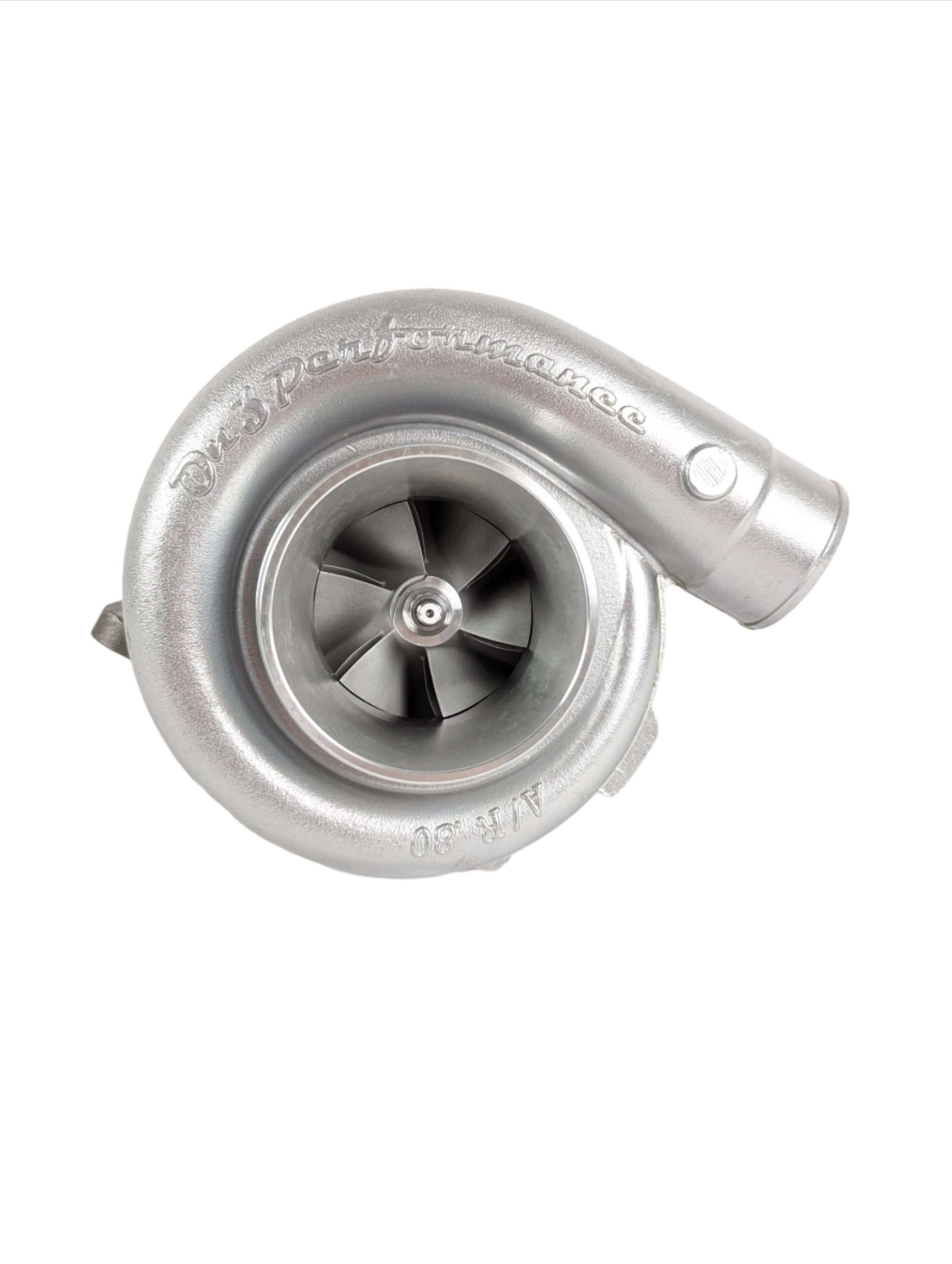

7665 T4 Turbocharger

On 3 Performance 76/65 Turbocharger

After years of selling this turbo, its has proven its point with being an affordable turbocharger that backs it up with great HP numbers. This turbo will be capable of supporting 750+ rwhp and have customers on the lower end of the power range around the 400's on low boost applications(Our 70mm is rated up to 680rwhp). On of the first cars our turbo was tested on was a 93 Cobra, 347ci and going 10.1x's on 8psi. No physical dyno numbers on that specific car but this car was running 13psi on our 70mm On 3 Performance turbo prior to the upgrade to accomplish almost identical track number.

ON 3 PERFORMANCE TURBO KIT CUSTOMERS INTERESTED IN UPGRADING TO THIS: Only $99 if you are purchasing an On 3 Performance Turbo system We have ran our turbochargers on anything from a daily driver to just the weekend cruiser. When setup properly they are very reliable and make exceptional power. The On 3 Performance 2002 GT on our website has our 70mm unit and has been daily driven, put through quite a few passes at the track, 20,000+ miles to this point and still in perfect operating condition.

      Recommend Turbo Feed and Drain: To ensure the longevity of your turbocharger, we normally run 1/8" feed and a 5/8" return. This is very important and without this properly sized, you can cause damage to the product. Cold Side

• Compressor Wheel 76mm
• .80 a/r
• 4" Inlet and 2.5" Compressor Outlet
• Inducer- 76.71mm
• Exducer- 102.36mm

Exhaust Side

• Exhaust Housing T-4 Flange
• .96 ar Exhaust Housing (.68 is also available)
• 3.0" Vband outlet
• Inducer- 74.5mm
• Exducer- 65mm

**The last 5 Images in the Product gallery are of the Billet Wheel Version that is listed as an upgrade option- You will not receive that unit unless you select Billet Compressor wheel in the drop down**
