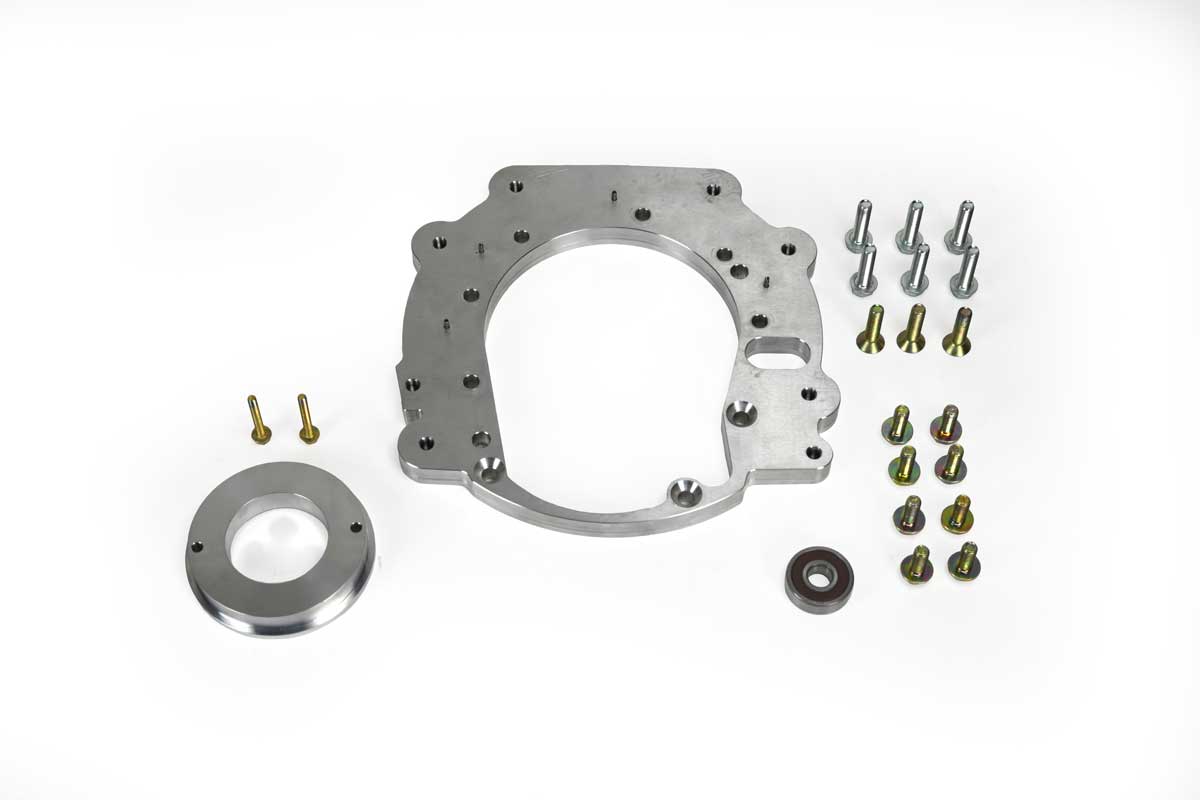

LS To AR5 Transmission Adapter Kit

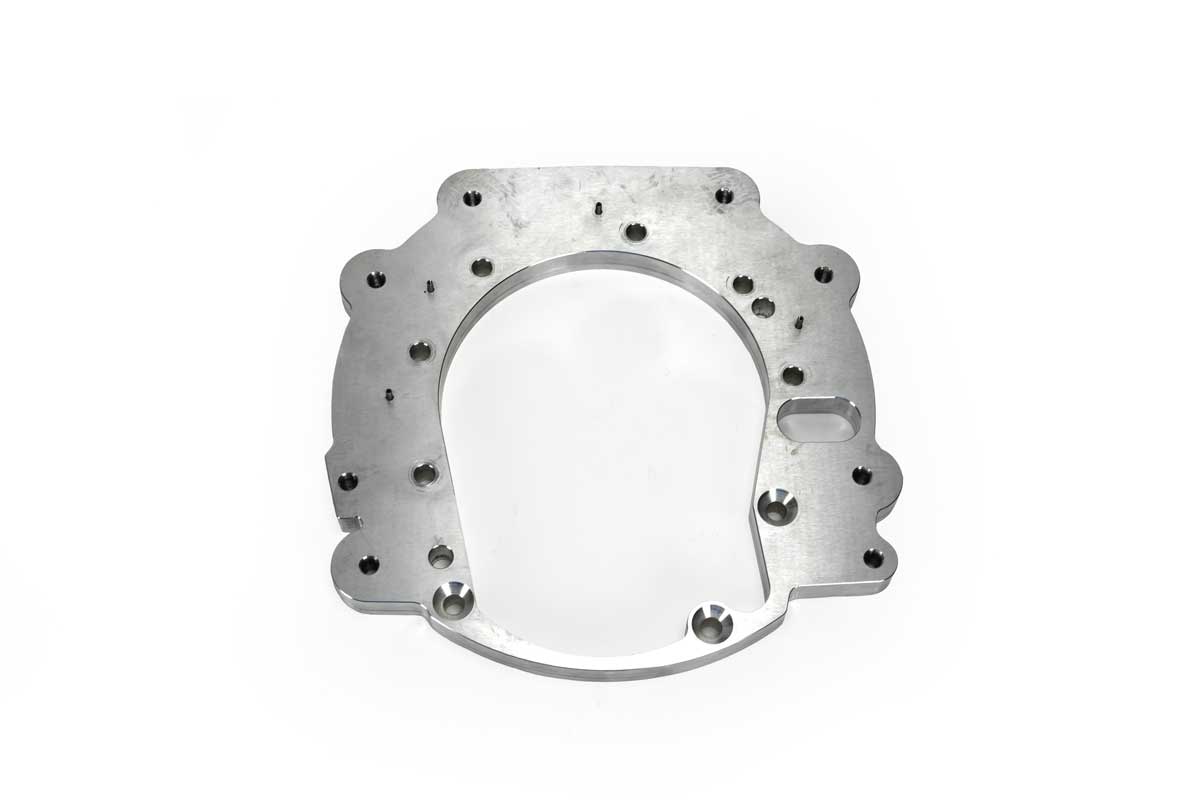

Bellhousing adpater for LS To AR5 Transmission Adapter Kit

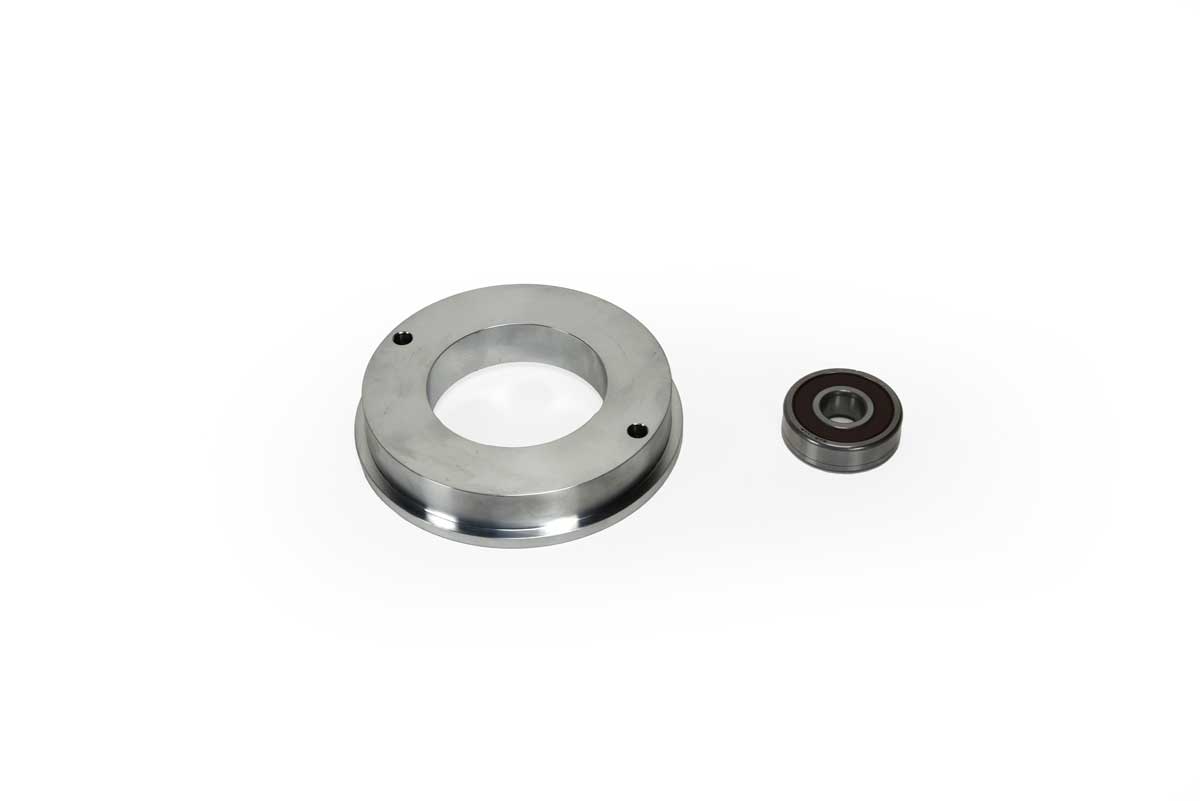

Pilot Bearing and Clutch Release Bearing Spacer for LS To AR5 Transmission Adapter Kit

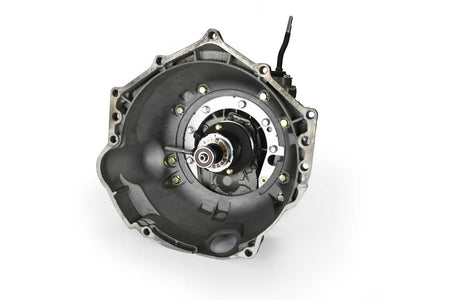

AR5 adapter kit attached to the transmission

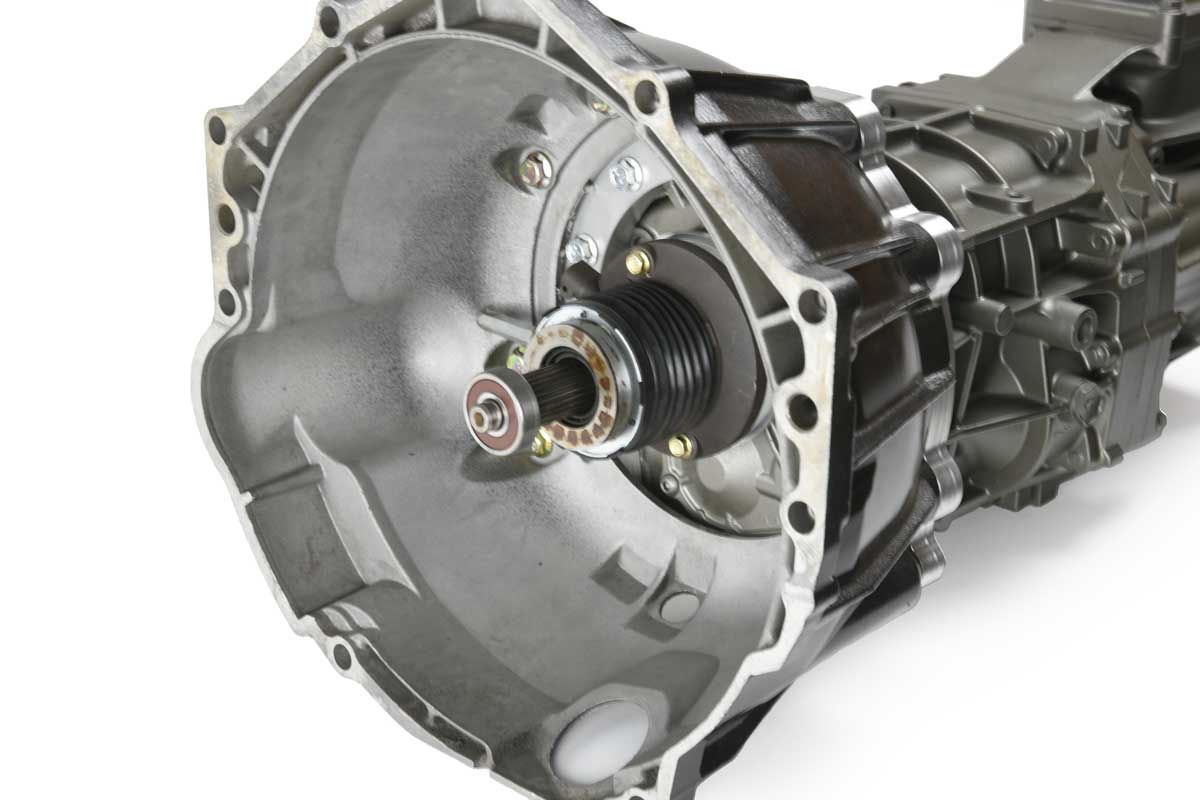

Aisin AR5 transmission

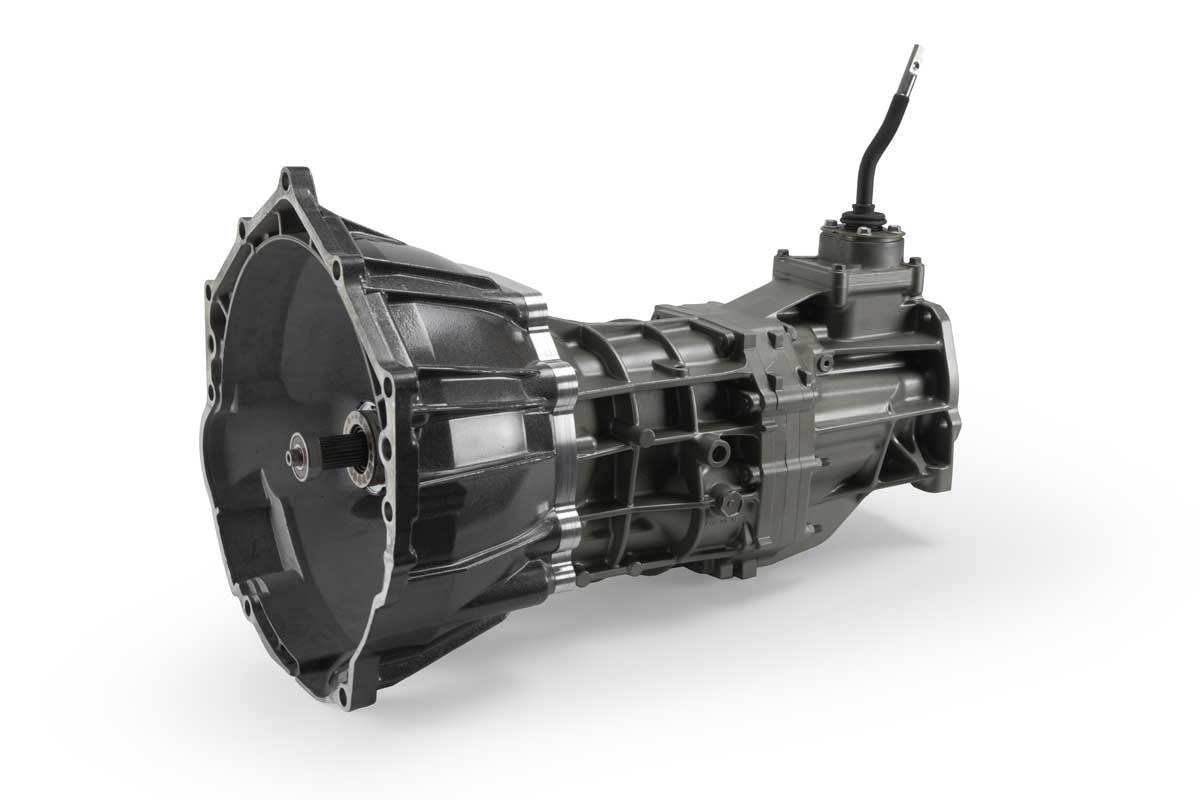

Full Aisin AR5 transmission

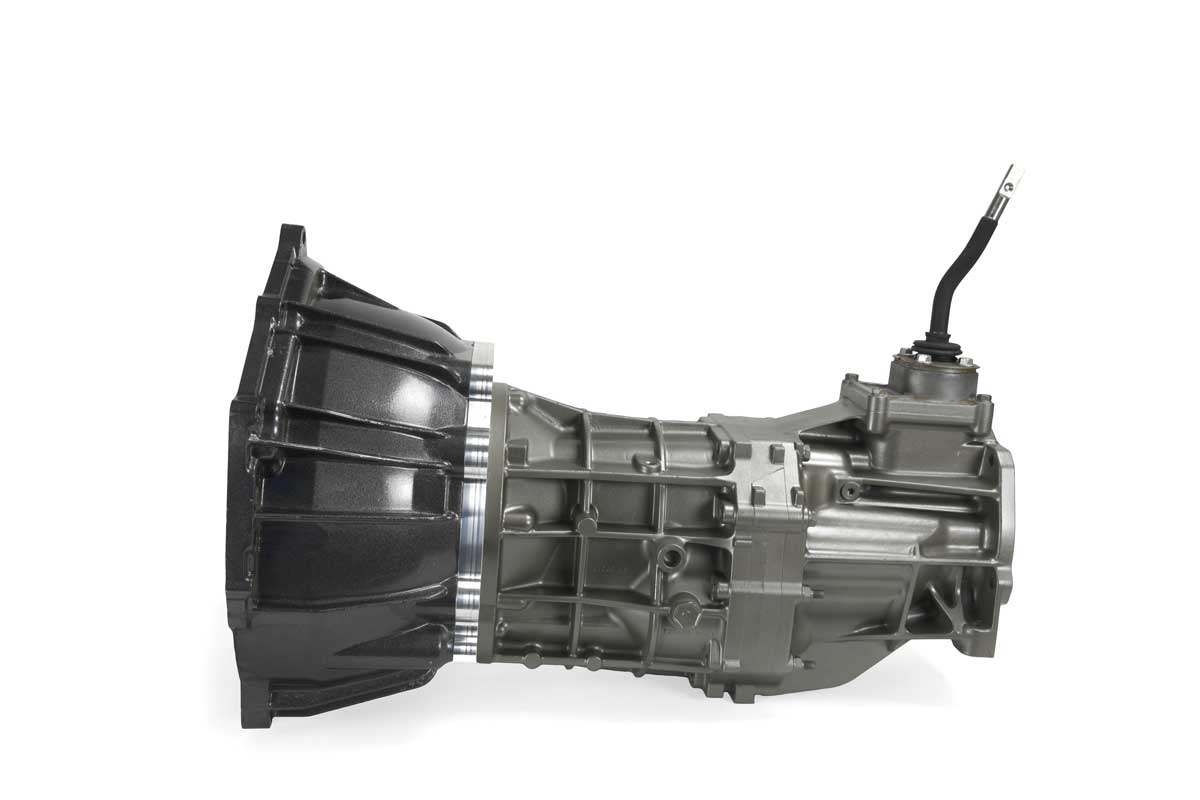

Full Aisin AR5 transmission with adapter kit installed

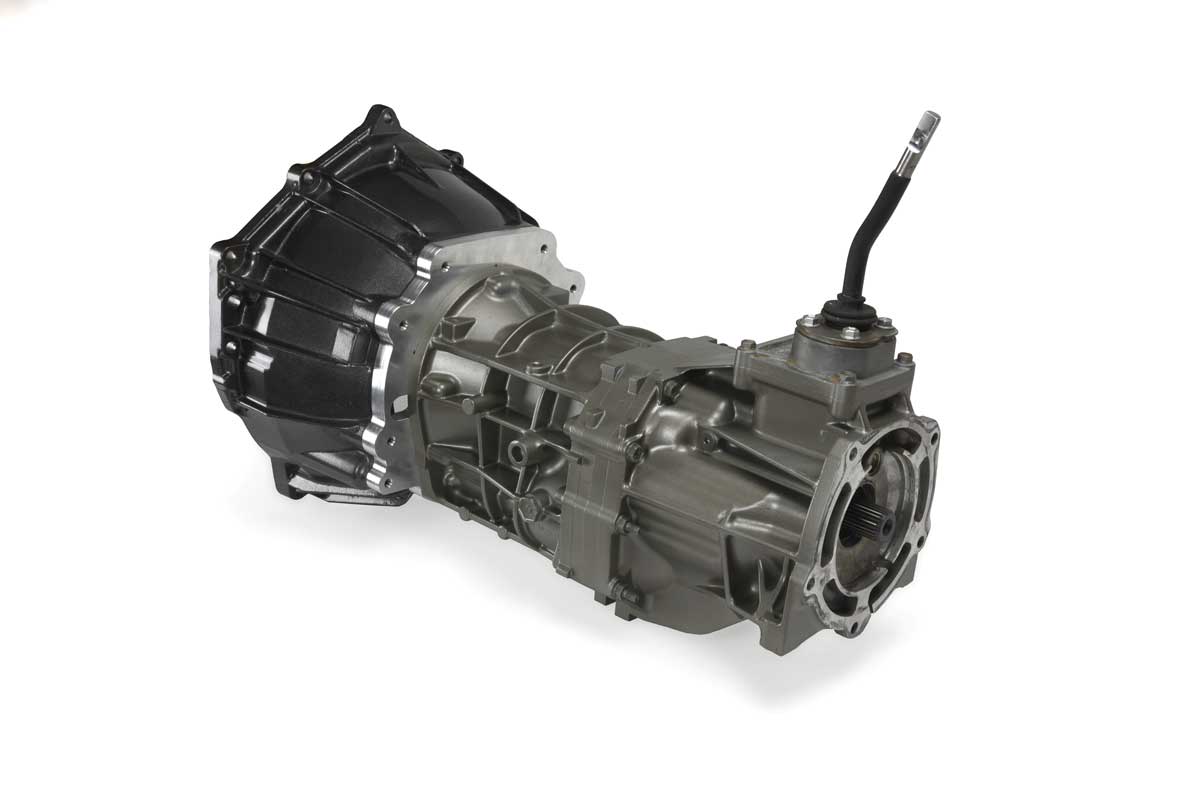

Aisin AR5 transmission with adapter kit installed full view

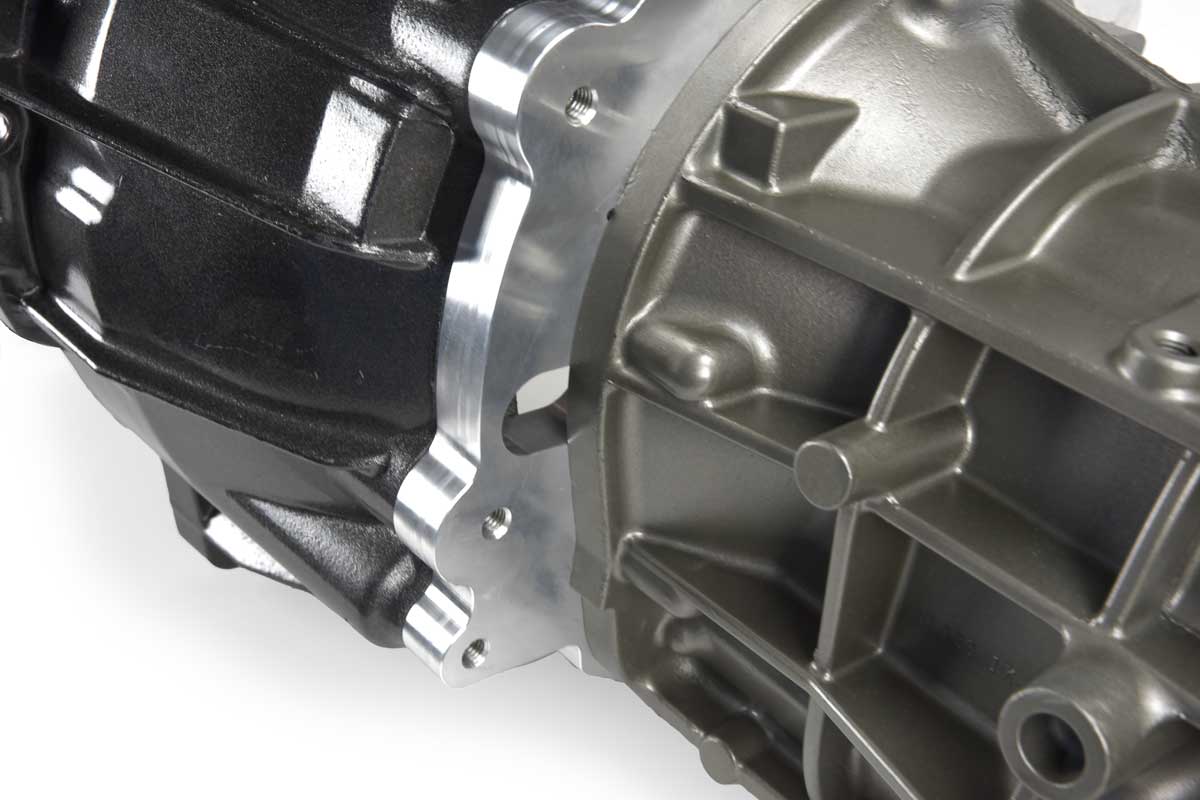

Aisin AR5 transmission adapter plate closeup
LS To AR5 Transmission Adapter Kit
Bellhousing adpater for LS To AR5 Transmission Adapter Kit
Pilot Bearing and Clutch Release Bearing Spacer for LS To AR5 Transmission Adapter Kit
AR5 adapter kit attached to the transmission
Aisin AR5 transmission
Full Aisin AR5 transmission
Full Aisin AR5 transmission with adapter kit installed
Aisin AR5 transmission with adapter kit installed full view
Aisin AR5 transmission adapter plate closeup

LS To AR5 Transmission Adapter Kit

SKU: GF-LSAR5-KIT
3 reviews
Usually ships within 24 hours. Out of stock items could take 21 days.
$289.00
$349.00 Sale $289.00
Product details
  • Type Transmission Adapters
  • Vendor G-Force
  • SKU GF-LSAR5-KIT

Do you have questions about this product?

Ask an expert!

Description Shipping information Reviews
  • Mate your Aisin AR5 5-speed manual transmission to any short-crank LS Gen 3 or Gen 4 engine utilizing this G Force Adapter kit
  • Designed to be used with an LS Style 4L60e bellhousing (not included)
  • Comes with the following:
    • 1- G Force Bellhousing Adapter
    • 1- G Force Clutch Release Bearing Spacer
    • 1- Pilot Bearing
    • 1- Hardware Kit
  • Constructed from 6061 T6 billet aluminum
  • Designed to be used with F-Body style throwout/ slave cylinder (LUK # 5100041770)
  • Use any F-Body LS1 T56 Clutch and Flywheel
  • Must be used with remote bleeder
  • AR5 Transmissions were found in Chevy Colorado and GMC Canyon in both 2WD and 4x4.

Discount codes cannot be applied to items already on sale.

Assembly Tips
