2024-2026 Mustang GT S650 / Darkhorse Vortech Supercharger Kit (Tuner)
Couldn't load pickup availability
NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
Product Details
Powered by Vortech’s V-3 JT-Trim supercharger, the S650 system utilizes advanced centrifugal compressor design, a patented self-contained oiling system, and industry-leading 76% adiabatic efficiency for reduced discharge temperatures, optimized thermal efficiency, and exceptional power capability beyond 1,000 horsepower.
Superior TechnologyCentrifugal superchargers easily make more pressure and flow than a roots type blower and are much more efficient. Read our Roots vs Centrifugal comparison to see the numbers.
Vortech supercharger systems are a great value. Dollar for dollar, Vortech systems deliver more horsepower than virtually any other method of upgrade. Also, driven normally, gas mileage often increases rather than decreases.
Tuner Kits, Upgrades, More HPTuner kits are also available with the 1,200HP V-7 JT-B, 1,200+HP V-7 YSi, or 1,400+HP V-7 YSi-B supercharger for high-performance racing vehicles. Call Vortech or your dealer for more information.
Supercharger Kit FinishesMultiple kit finishes available. For that fully integrated look, 5.0 Mustang systems are available in factory matching black finish. Satin and Polished units are also available.

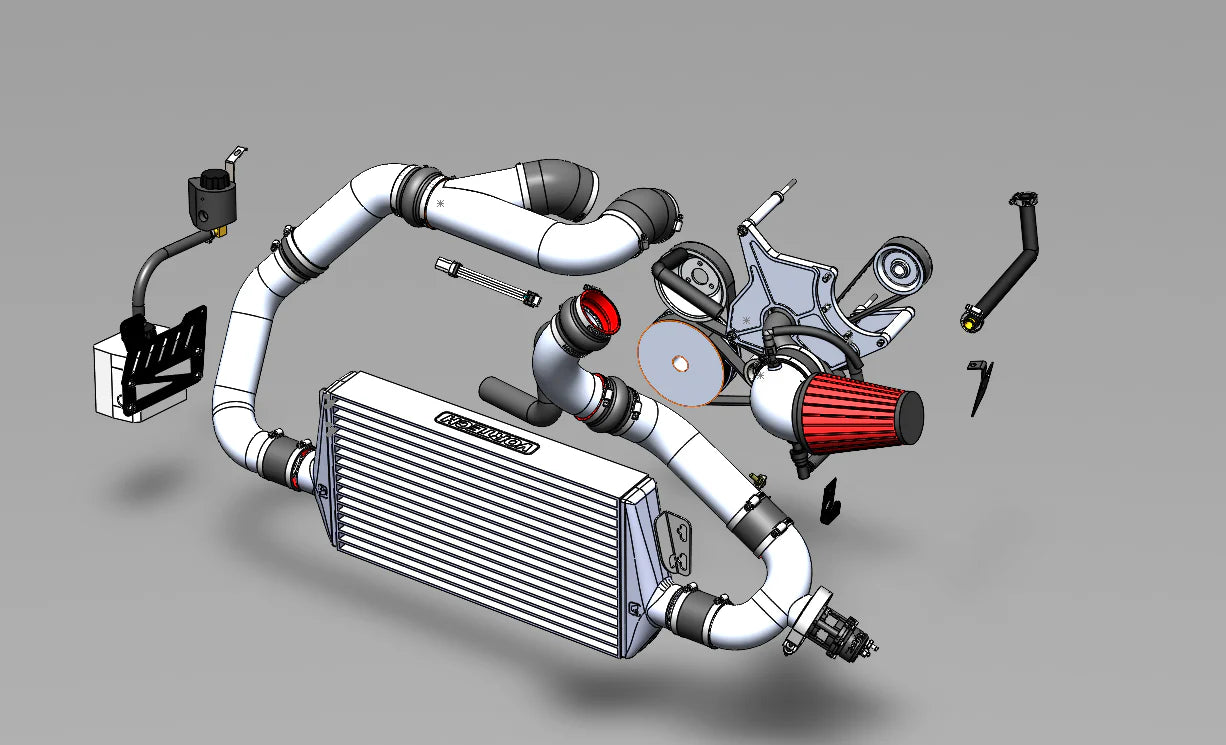

Included Components and FeaturesSupercharger:- V-3 JT-Trim compressor with 3.80" drive pulley- Manifold boost pressure: 10-10.5 psig @ redline on stock engine
Air inlet assembly includes:- Open element conical filter- Inlet elbow- Silicone sleeves- Stainless steel clamps- PCV and breather hose provisions- Replacement engine coolant pipe and hose assemblies
Engine cooling hose amendments- Replacement thermostat housing- Engine coolant reservoir relocation bracket- All necessary hoses and clamps for engine coolant re-routing- Replacement windshield washer fluid tank and filler
Mounting Brackets-Robust dual plate supercharger mounting system with 3/4" thick front plate, and 1/2" thick rear plate prohibits flex.
Discharge components include:
- High flow air/air charge cooler. 24" x 13" x 3.5" cooler core.- Mandrel bent aluminum charge tubes for high flow and minimal weight- Stainless steel clamps- Silicone sleeves- Vortech Maxflow Race Bypass Valve with filter- Provision for future bolt-on application of Vortech Maxflow BV57 bypass valve
InstallationInstallation time is rated at 7-10 hours.
INSTALLATION MANUAL- PLEASE NOTE: Vehicles with adaptive cruise control may require additional modifications for proper fitment.
CARB ComplianceTuner Kits are NOT CARB legal, and are legal in California only for racing vehicles which may never be used, or registered or licensed for use, upon a highway (off-road use only). The manufacture, sale, offer for sale, or installation of this product may also be illegal under the federal clean air act (42 U.S.C. § 7522(A)(3)).
Supercharger pulleys6-Rib pulleys: 2A036-348, 2A036-333, 2A036-312, 2A036-287
2024-2026 FORD 5.0L MUSTANG GT TUNER KITS
For decades, Vortech Superchargers has defined boosted Mustang performance. From Fox Bodies to modern Coyote platforms, Vortech systems have helped push Ford performance far beyond factory limits.
Now, that legacy continues with the all-new S650 Mustang Supercharger Tuner Kit. Engineered specifically for the 2024-2026 Ford Mustang GT, the new system delivers the aggressive power, proven reliability, and race-inspired performance Vortech is known for worldwide.
Developed from a clean-sheet design, the S650 system features an all-new bracket architecture, optimized inlet routing, and precision accessory integration. Every component was designed to maximize belt control, airflow efficiency, system rigidity, and OEM-level fitment under extreme performance conditions.
For higher-horsepower, custom-tuned installations we recommend a tuner kit, which does not include a fuel pump, fuel injectors or ECU programmer. This requires you or your installer to provide custom calibration and the required fuel components. The V-3 JT-Trim supercharger included with the tuner kit is capable of up to 1,000 HP on modified vehicles.
