1973-1987 GM K Series Cummins Kit | GF-GMK3-KIT
Motor mounts adapter
Gm K Series Cummins Convers Kit Diagram
Roll over image to zoom in Click on image to zoom
1973-1987 GM K Series Cummins Kit | GF-GMK3-KITMotor mounts adapterGm K Series Cummins Convers Kit Diagram

1973-1987 GM K Series Cummins Conversion Kit | GF-GMK3-KIT

G-ForceSKU: GF-GMK3-KIT
No reviews
Price:
$1,750.00
Stock:
Re-stocking soon
Some photos may not represent listed product.

Pickup available at 127 Hartman Road

Usually ready in 10-14 business days

  • Fine Lines products ship in 10-14 business days.
  • Droppshipped items may take longer than 10 days if out of stock.
  • Droppshipped items may require a signature upon delivery.
  • Call for shipping times on Out of Stock items.

ShopPay: Rates from 0%-36% APR. Payment options through Shop Pay Installments, are subject to an eligibility check and are provided by these lending partners: https://www.affirm.com/lenders. Options depend on your purchase amount, and a down payment may be required. State notices to consumers: https://www.affirm.com/licenses.

Description

Our 73-87 GM Truck K Series Cummins Kit is comprised of many of the items needed for your Cummins diesel engine conversion. It includes a transmission adapter and flexplate to mate a TH400, 700R4, or 4L80E transmission to a 6BT Cummins engine.  Our Cummins bolt-in 2" drop engine crossmember (or K Member) allows for proper engine placement and provides chassis strength to accommodate the added torque of the Cummins!

  • Fits Truck Model Years: 73-87.
  • Fits Engine Years: 89-02.
  • Fits Transmissions: Chevrolet TH400, 700R4, 4L80E.
  • This kit is comprised of some of our most popular items for your 73-87 Chevy K Series Cummins conversion.

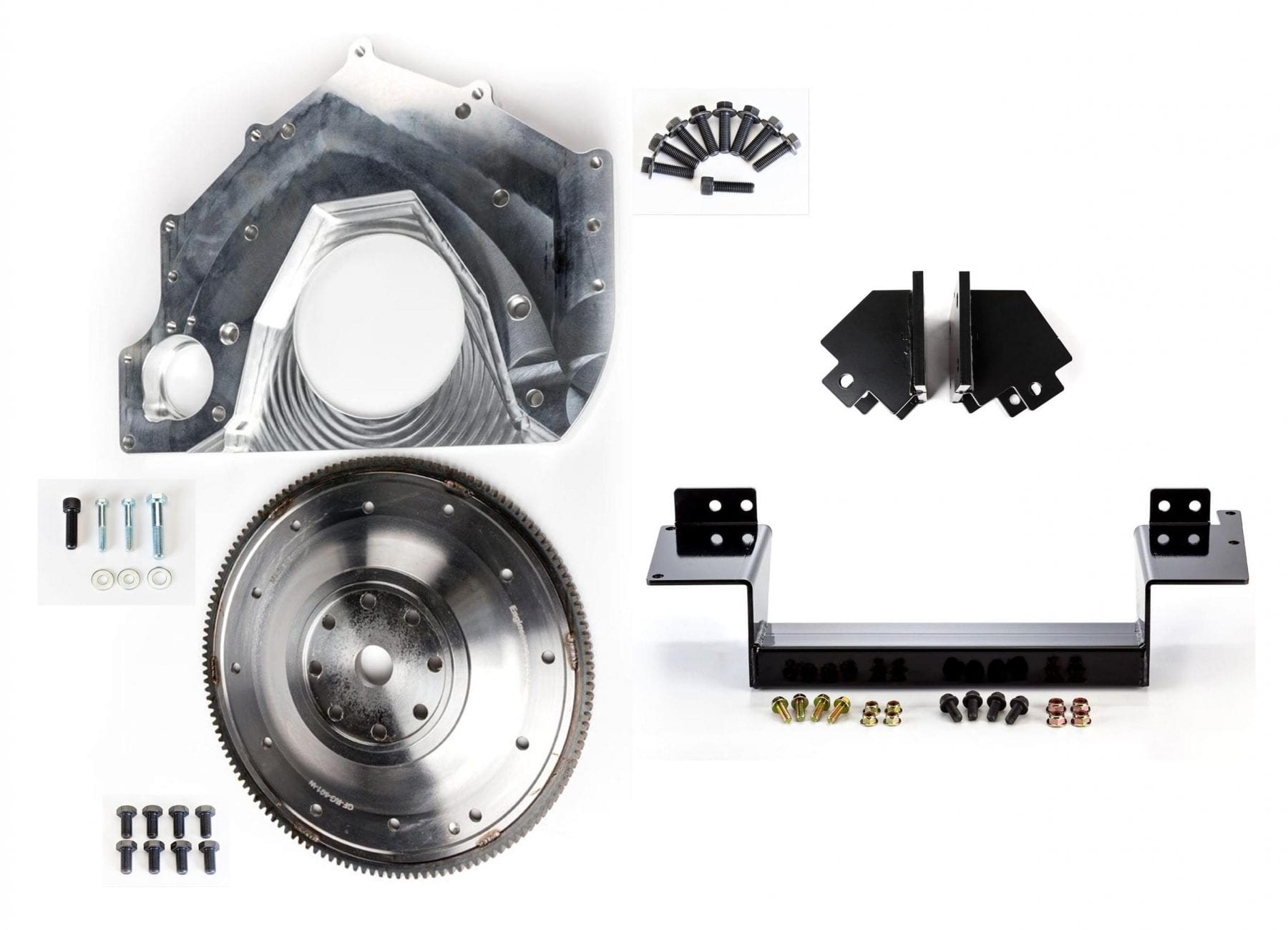

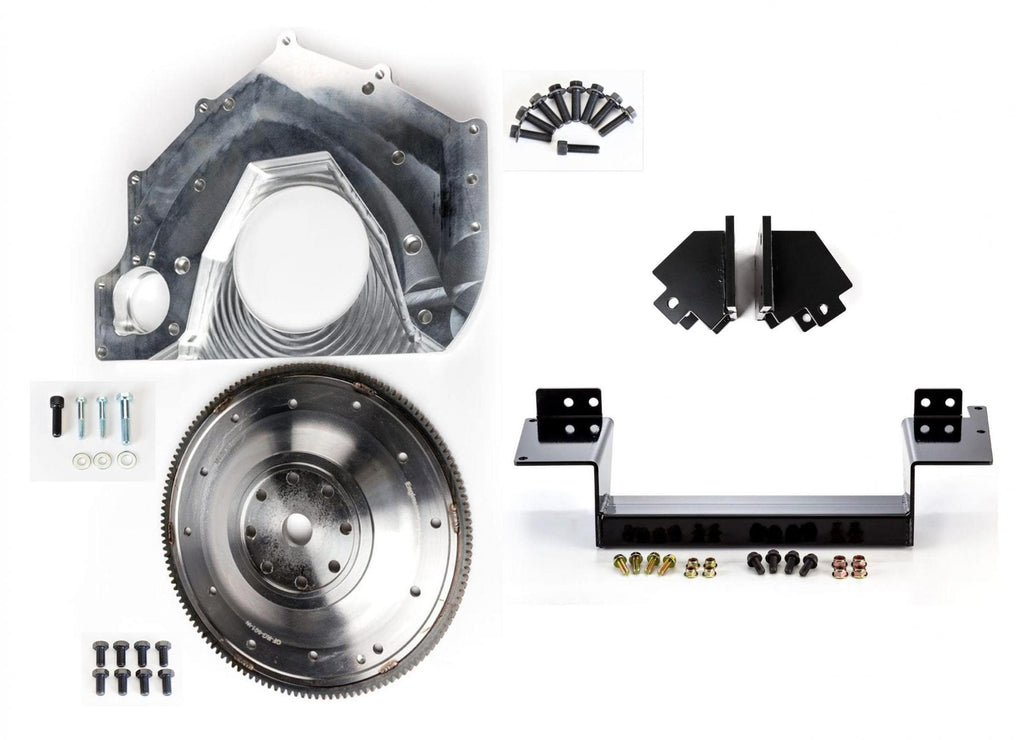

  • The Kit includes:
    • GF-C-S - Adapter and Flexplate-  The 5.9 Cummins to Chevy Adapter Plate and Flexplate Kit accommodates 2002 and earlier Cummins 6BT engines bolting to a Chevy automatic transmission such as a TH400, 700R4, 4L80E, or similar transmission.

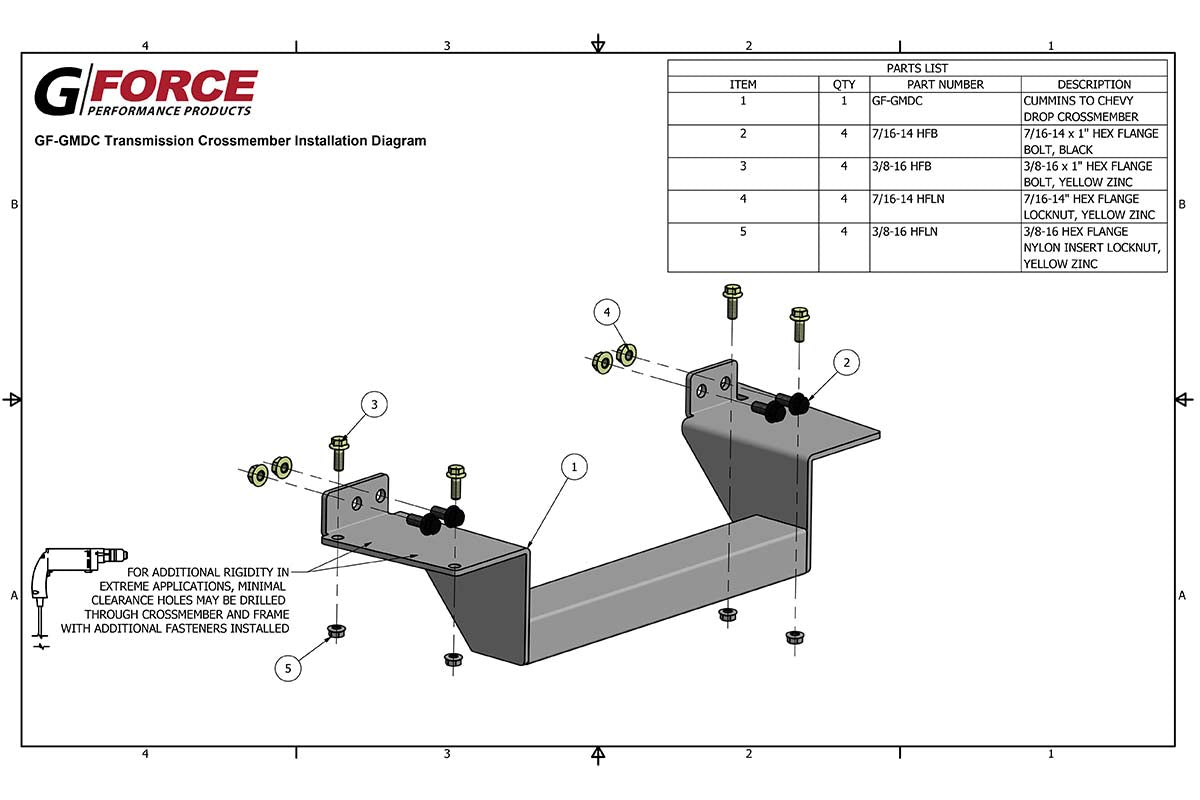

    • GF-GMDC - Cummins 6BT to Chevy Drop Crossmember-  This 2" drop crossmember allows proper engine placement and often eliminates the need for a lift kit when installing a Cummins 6BT into a 73-87 Chevy 4WD truck.

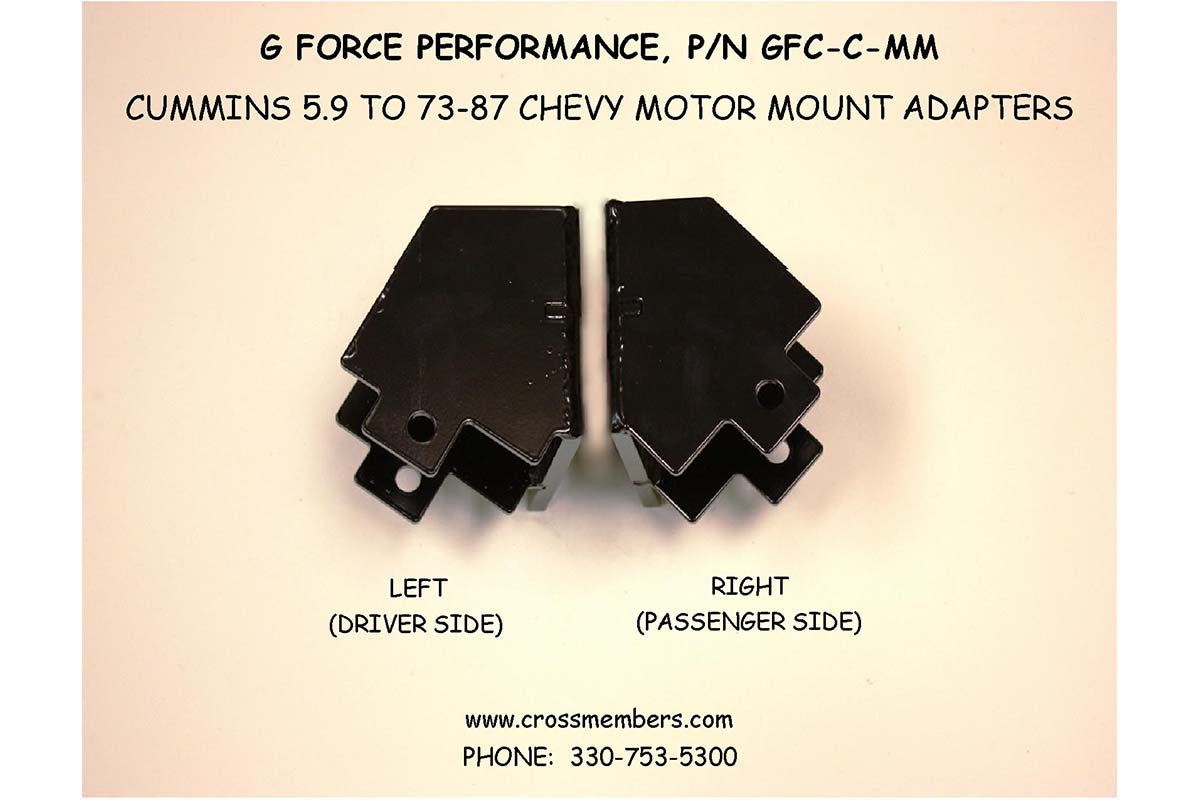

    • GF-C-MM - Motor Mount- When installing a Cummins 6BT into your 1973-1987 Chevy pickup, this conversion motor mount allows for proper placement of the engine directly to the OEM frame mount isolators. When used in conjunction with a G Force GF-GMDC Drop Crossmember on 4WD models, you can retain OEM drivetrain height. Without our GF-GMDC Drop Crossmember a vehicle body lift is required.
    • GF-BoltKitAdapter - Adapter Bolt Kit,  Premium grade bellhousing adapter bolt kits to make mounting the adapter plate to engine as simple as possible. Set of 9 bolts.
    • GF-BoltKitFP - Flexplate Bolt Kit, -Flexplate bolts for mounting your Cummins 6BT to a GM Bellhousing. 12mm x 1.25. 25mm underhead length. Set of 8 bolts
    • GF-BoltKitStarter - Starter Bolt Kit - Steel, zinc plated bolts constructed to strict engineering quality standards and serve as direct replacement bolts for replacing the Cummins 6BT starter. Set of 4 bolts with 3 washers

Note: This kit ships in two boxes.
