New Prebent Brake Lines for the 2013 Ford F-150 3.5L Ecoboost!

Broken Brake Line? No problem! Fix it with a Prebent Brake Line from SSTubes.

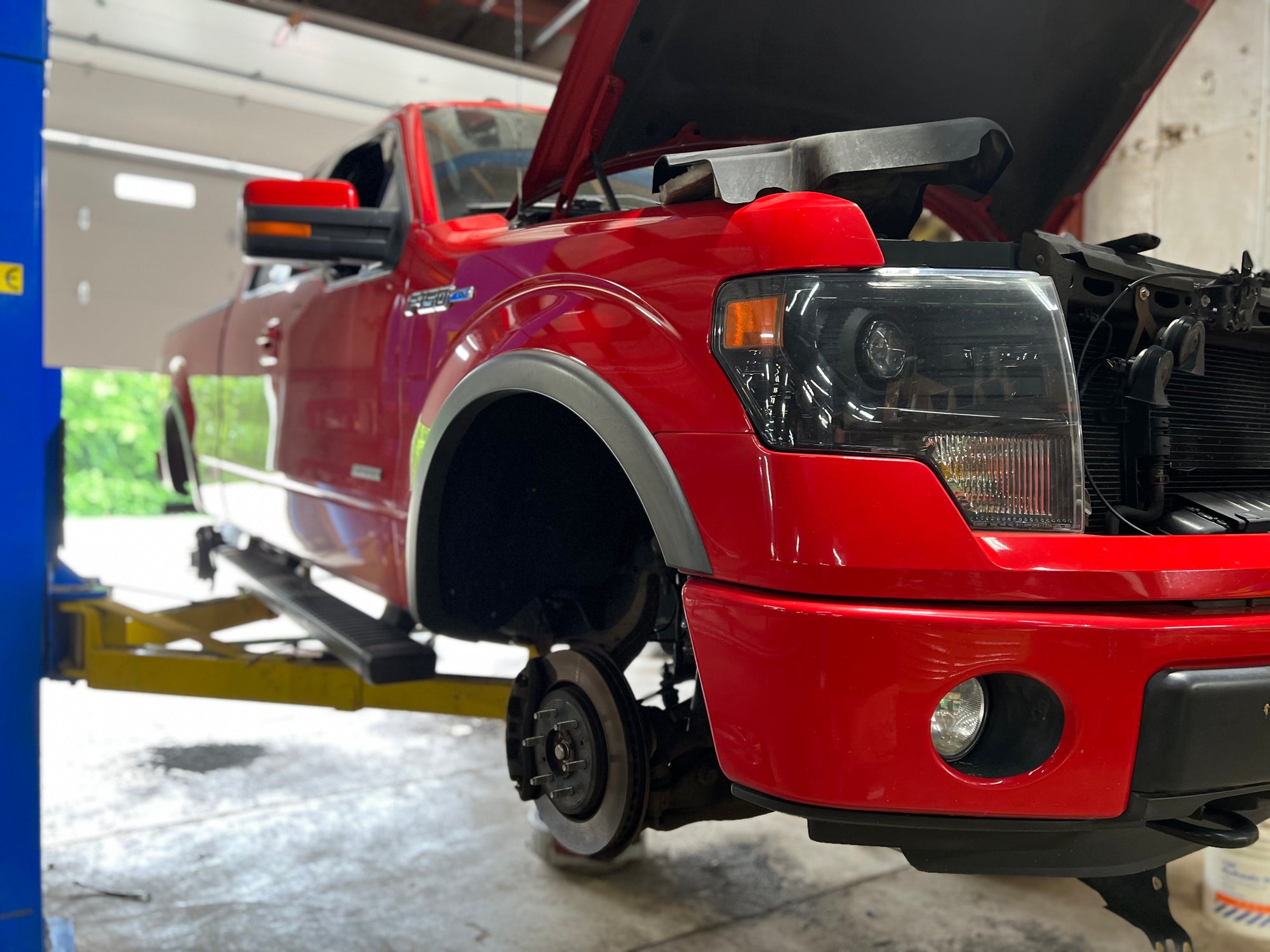

This weeks project at Fine Lines is 2013 Ford F-150 Supercab with the 3.5L Ecoboost engine. The customer broke a brake line. Luckily they happened to know one of our employees and lived near by.

We were able to re-manufacture the brake lines and designed one of our new Quick Fix Fuel line kits for it. Let us know if you like what you see in the comments below!

ABS Module

Here are the brake lines coming out of the ABS module on this 2013 F150 EcoBoost.

Driver side Rear axle brake line and stainless brake hose

Here you see the center line feeding into the rear differential as well as the prebent stainless steel brake lines feeding along the rear axle to rear braking systems for each tire.

Passenger side brake line and stainless brake hose

The stainless steel rear brake line to the passenger side rear brake is prebent to mold around the differential cover, making it easier to do rear differential and axle work.

Driver side front brake line

This is a junction or connection from one hard brake line to another. The prebent brake lines are created like this because inserting a line in one piece would be nearly impossible to snake through the engine and round every curve. Junctions in the hard brake lines are necessary for easier installs.

Passenger side front brake line

The prebent stainless steel brake line is connected to the soft brake hose at  the front brake.

Front brake hose stainless

Close up of the brake hose connection to the front brake.
